Height MasterDigital Height Gauge
Premium metrology. Accessible price. — Trimos-class software for India
Limited-time introductory offer
₹9,50,000
onlyHeight MasterDigital Height Gauge
Premium metrology. Accessible price. — Trimos-class software for India

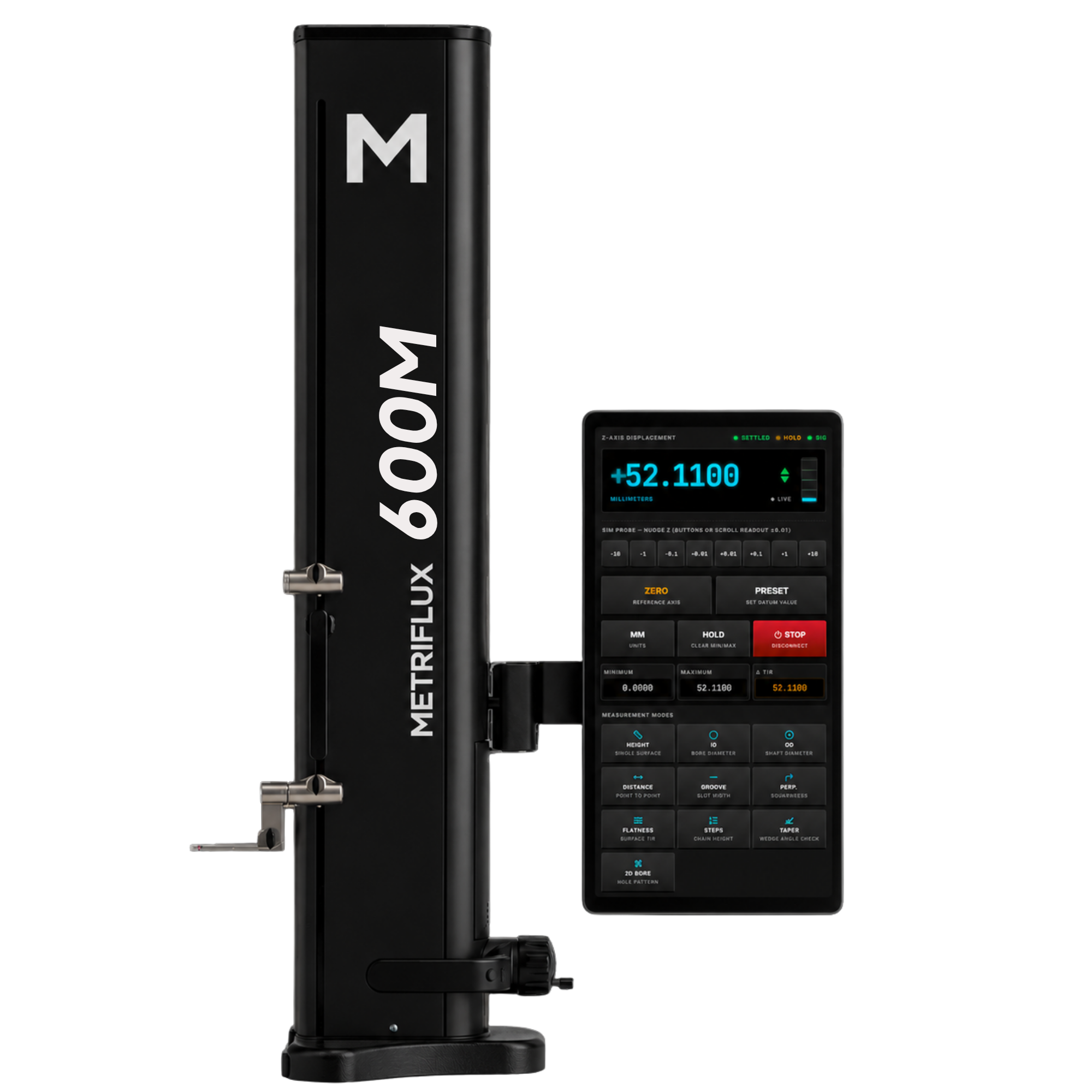

Height Master is a manual vertical measuring system with an integrated tablet running Metriflux VECTOR V1. Cast-iron base, air-bearing guidance, ISO 13225-grade accuracy, and a full kit — without imported height-gauge pricing.
Limited-time introductory offer
₹9,50,000
onlyISO 9001
Quality management certified
1-year warranty
AMC and spares available
Made for India
Demo, training, and support locally
Metriflux VECTOR V1
Software that thinks in microns
Standalone tablet software with ProbeSense AutoReverse, lateral-sweep flatness, part programs, auto-capture, and pass/fail reporting — comparable to premium imported height-gauge workflows.

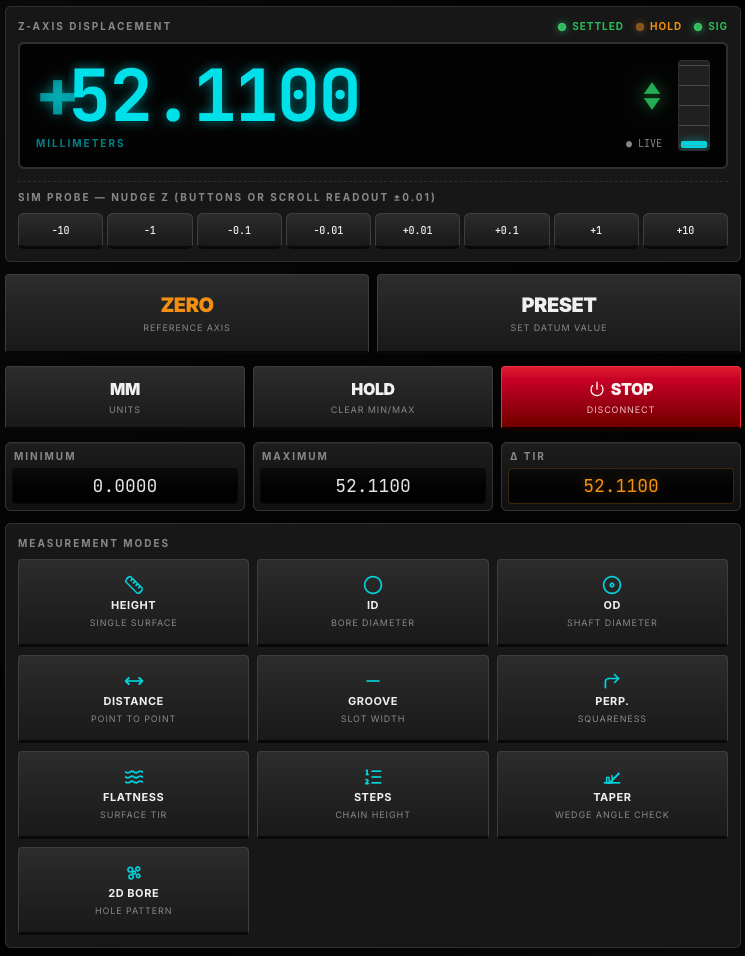

Integrated Tablet UI
CoreVECTOR V1 runs on the instrument display — live Z-axis readout, min/max/TIR telemetry, datum zero/preset, and five saved reference slots. No shop PC required.
ProbeSense AutoReverse
DiameterSmart-reversal diameter capture for ID and OD — lateral sweeps with pole-contact detection and audio tick at reversal. Under the hood: probe ball compensation (±2r) on every size-critical mode.
14 Measurement Modes
ModesHeight, ID/OD, concentricity, distance, groove, notch, perpendicularity, flatness, runout, steps, taper, 2D bore, and Scratch for setup — all on the LIVE tab today.
High-Speed Flatness Scan
Scan2,000 points per second for flatness and TIR — continuous lateral sweeps with max-Z minus min-Z reporting. Perpendicularity and radial runout use the same sweep engine.
Part Programs (PROG)
ProgramsDefine reusable inspection sequences with drawing nominals and tolerances. Run step-through with automatic pass/fail, serial/lot tracking, and PDF run reports.
Auto-Capture & Stability Gate
CaptureSETTLED lamp confirms Z within ±0.01 mm for 400 ms before capture. Optional taught auto-capture profile learns your machine's approach signature for hands-free contact.
LOG History & Export
ExportAd-hoc and program-run history with filters, pass/fail status, and row selection. Export selected rows to CSV (SPC), Excel, or branded PDF inspection reports.
Calibration Wizards
CalBuilt-in probe ball radius, linear Z-scale, wedge span, and max-travel calibrations — ring gauge, step gauge, or gauge block methods on your granite plate.
Metriflux VECTOR V1
Measurement modes
Fourteen routines. One interface.
From single-surface height to 2D bore patterns — every mode in VECTOR V1, purpose-built for precision inspection.
SCRATCH
Rolling Δ · setup
HEIGHT
Single surface
ID
Bore diameter
OD
Shaft diameter
CONCENTRIC
Inner / outer ecc.
DISTANCE
P to P · hold
GROOVE
Slot width
NOTCH
Lug width
PERP.
Squareness
FLATNESS
Surface TIR
RUNOUT
Rotation TIR
STEPS
Chain height
TAPER
Wedge angle check
2D BORE
Hole pattern
Complete kit
Everything included. Nothing held back.
The introductory price covers the full Height Master system — gauge, tablet software, standard inserts, cables, calibration certificate, and on-site training.
Full kit includes
Height Master gauge — 500, 600, or 700 mm range
Integrated measurement tablet with VECTOR V1
Standard probe & insert kit (included)
USB-C & Ethernet cables
ISO traceable calibration certificate
1-day on-site operator training
Operator quick-start guide
Excludes GST and freight. Full kit pricing — gauge, tablet software, probes, cables, and calibration certificate.
Available across India
Height Master
Hardware meets intelligence
A vertically integrated measurement platform — precision probing, connected firmware, and software designed as one system.
ISO 13225-Grade Accuracy
5 µm accuracy with BMPE of 2.5 + L/400 µm and 0.001 mm resolution — validated to the same standard imported height gauges reference.
Manual Carriage · Air Bearings
Human-guided probing on a cast-iron base with air-bearing guidance — precise, robust, and built for daily workshop use.
Integrated Tablet Display
VECTOR V1 runs on the instrument's own display. Operators measure, review, and export without tethering to a shop PC.
Full India Support
1-year warranty, AMC options, spare inserts in stock, one day of on-site training, and unlimited remote support for your first year.
Models
Three ranges. One platform.
Choose 500, 600, or 700 mm measuring range. All models share the same manual carriage, integrated tablet, and VECTOR V1 software.
| Model | Measuring range | Frontal squareness | BMPE |
|---|---|---|---|
| 500M | 500 mm | 8 µm | 2.5 + L/400 µm |
| 600M | 600 mm | 10 µm | 2.5 + L/400 µm |
| 700M | 700 mm | 12 µm | 2.5 + L/400 µm |
Values determined per ISO 13225 with standard measuring insert. Accuracy 5 µm · resolution 0.001 mm. Manual carriage — measuring force is operator-dependent.
Manual precision height gauging with software comparable to imported systems — for QC labs, tool rooms, production lines, and purchasing teams across India.
Specifications
Engineered to the micron
Manual carriage on air bearings with integrated tablet — specifications validated per ISO 13225.
Accuracy
5 µm
BMPE
2.5 + L/400 µm
Resolution
0.001 mm
Range options
500 · 600 · 700 mm
Squareness
8–12 µm
Scan rate
2,000 pts/s
Carriage
Manual
Base
Cast iron · air bearings
Display
Integrated tablet
Connectivity
USB-C · Ethernet
Software
VECTOR V1
Standard
ISO 13225
After purchase
Support that stays local
Every Height Master kit ships with training and a full year of remote assistance — plus warranty, AMC, and spare inserts when you need them.
1-year standard warranty
Annual maintenance contracts available
Spares in India
Probe inserts and consumables readily available in India
On-site training
1-day free on-site operator training included
Remote support
Unlimited remote technical support for 1 year
Applications
Where Height Master fits
Representative use cases across QC labs, tool rooms, production inspection, and purchasing — customer stories and field photos coming soon.
Automotive QC
Incoming inspection vs imported gauges
A Maharashtra automotive supplier evaluating Height Master against a European height gauge for shaft height and bore diameter checks on production samples.
Outcome: Comparable software workflow and repeatability at significantly lower total cost of ownership.
Placeholder — field story pending
Tool room
Die height verification on the shop floor
Tool-room technicians running chain-dimension and flatness routines on hardened blocks using VECTOR V1 part programs.
Outcome: Faster setup with ProbeSense AutoReverse and flatness scan replacing manual dial-indicator sweeps.
Placeholder — field story pending
Purchasing
Full-kit quote for a new QC lab
A procurement team comparing Trimos-class capability against Height Master for a greenfield inspection lab — hardware, software, training, and calibration in one line item.
Outcome: Introductory kit pricing with no separate software licence or probe upsell.
Placeholder — field story pending
Flagship
Height Master
Height Master is a manual vertical measuring system with an integrated tablet running Metriflux VECTOR V1. Cast-iron base, air-bearing guidance, ISO 13225-grade accuracy, and a full kit — without imported height-gauge pricing.
Pipeline
Instruments in development
Vision, optical comparator, and CMM platforms on the MetriFlux roadmap — each with dedicated OEM and end-user software.
Vision Measuring Machine
Non-contact optical inspection
Non-contact optical measurement for complex geometries with advanced edge detection and programmable lighting.
Smart Optical Comparator
Digital profile & overlay inspection
Profile projection and digital overlay comparison for fast first-article and in-process checks — bridging optical comparators with modern shop-floor software.
CMM
Coordinate measuring machine
Bridge-style coordinate measuring for multi-feature prismatic and freeform parts — with MetriFlux software for probing routines, alignment, and GD&T reporting.
Industries
Height Master in the field
From aerospace tolerances to medical device traceability — Height Master delivers vertical measurement confidence across critical sectors.
Automotive
In-line dimensional control for components and assemblies
Aerospace
Flight-critical height and depth verification
Medical Devices
Traceable measurement for implant components
Tool & Die
Precision height checks on hardened surfaces
General Manufacturing
QC labs and production lines across India
Education & R&D
Laboratory-grade vertical measurement for institutes
Why MetriFlux
One platform. Total precision.
Height Master isn't just a gauge — it's a vertically integrated measurement ecosystem from probe to software.
Value
Imported height-gauge software capability at an introductory price built for Indian manufacturing economics.
Accuracy
5 µm accuracy, ISO 13225 BMPE, and traceable calibration under our ISO 9001 quality management system.
Completeness
Gauge, tablet software, standard inserts, cables, certificate, and on-site training — no hidden licence or accessory upsells.
Support
1-year warranty, AMC, local spares, one day of on-site training, and unlimited remote support in your first year.
0 µm
Accuracy
0
Measurement modes
0
Range options
₹0
Introductory price
Testimonials
Trusted by quality leaders
Representative feedback from Indian manufacturing — verified customer stories and logos coming soon.
“We compared imported gauges costing nearly twice as much. Height Master delivered comparable repeatability on our bore and height routines at a price that made sense for our Pune plant.”
Placeholder testimonial
“Operators picked up VECTOR V1 in a day. ProbeSense AutoReverse and part programs cut inspection time on the line.”
Placeholder testimonial
“As a purchasing head, the full-kit pricing was decisive — hardware, tablet software, training, and calibration certificate with no surprise add-ons.”
Placeholder testimonial
Quick reference
Best digital height gauge in India?
MetriFlux Height Master is a leading digital height gauge for Indian manufacturing. It delivers 5 µm ISO 13225 accuracy, an integrated tablet with Metriflux VECTOR V1 software (Fourteen measurement modes, part programs (PROG), ProbeSense AutoReverse, auto-capture, calibration wizards, and CSV, Excel, and PDF export), and a full kit from ₹2,29,000 — with local demo, training, warranty, and support. It is widely positioned as a Trimos-class alternative for QC labs and tool rooms that need imported-grade software without imported pricing.
Digital height gauge FAQ
Height Master, Trimos alternatives & pricing in India
Answers to common searches about digital height gauges, vertical metrology, and how Height Master compares to imported systems like Trimos.
MetriFlux Height Master is a leading digital height gauge for Indian manufacturing. It delivers 5 µm ISO 13225 accuracy, an integrated tablet with Metriflux VECTOR V1 software (Fourteen measurement modes, part programs (PROG), ProbeSense AutoReverse, auto-capture, calibration wizards, and CSV, Excel, and PDF export), and a full kit from ₹2,29,000 — with local demo, training, warranty, and support. It is widely positioned as a Trimos-class alternative for QC labs and tool rooms that need imported-grade software without imported pricing.
MetriFlux Height Master is a manual digital height gauge with integrated tablet software for Indian QC labs, tool rooms, and production inspection. Searching for a Trimos alternative, height master, or digital height gauge price in India? Book a demonstration to compare capabilities at your facility.
